PD60-Series
PD6000-Front
PD6000-Options

(Specify options when ordering)

  • 12 Volt DC output connectors available as either 1/4” tab
    connectors rated 30 Amps max., or screw-type rated 20
    Amps max.
  • 18 fuse holder with 15-position ground bus bar.
  • LED indicators alert to blown fuse.
    Measurements and Weight*: (Flush mount)
    Dimensions: 4.25”W x 9.25”H x 2.0”D
    Cut-out size: 3.5”W x 7.5”H
    Weight: 1 lbs.
    *Retail and OEM Part Numbers will be determined by your
    selected options when you place your order.
PD6000-Features
  • Can be mounted vertically or horizontally.
  • Holds up to 18 ATC-type fuses rated for up to 30 Amps.
  • DC Panel has 2 built-in 12 Volt positive power
    terminals for connecting battery and
    converter positive wires.
  • Attractive lightweight panel design made
    from black impact-resistant high
    temperature polymers

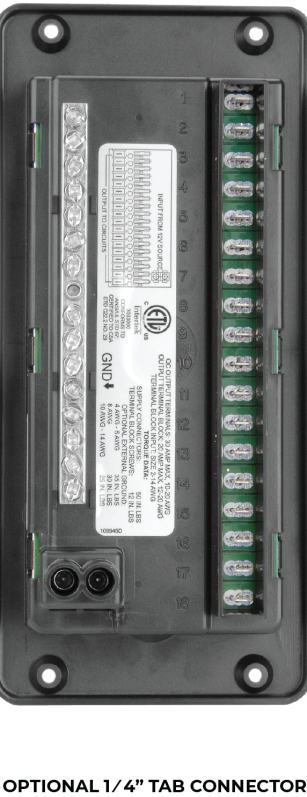

PD6000-Inside
ETL-Warranty-USA

PD60A  Panel Combines the best features

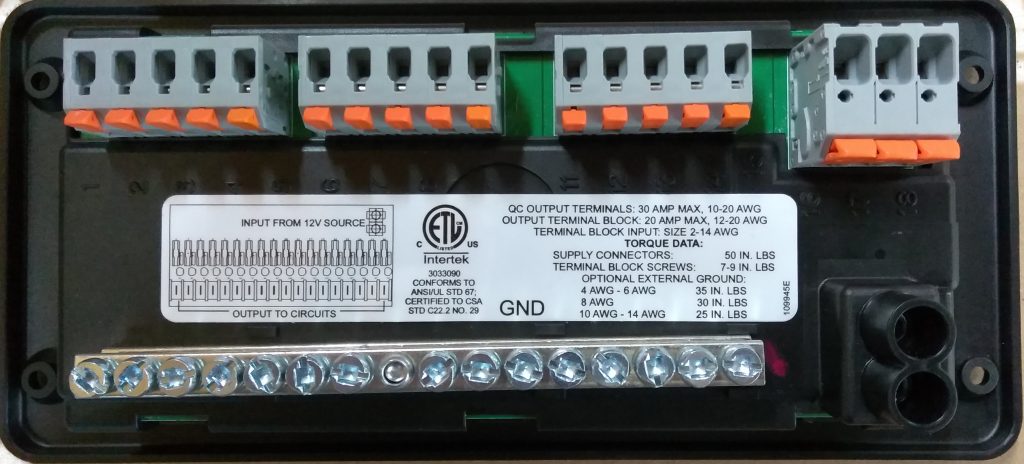

PD60A-Connection-Side

Wago connectors; 15-20 Amp, 3-30 Amp positions; 2 Inputs; Blown Fuse LED’S; 11 position DC ground Bar; Color = Black.



PD60A-Inside
Powering-Possibilities

Product Information

Series Name Models coveredOwners / Installation ManualTroubleshooting GuideParts or accessories
PD6000
DC Distribution Panel		PD60K***
PD60B***		Guide to PD6000 model numbersN/A

Available Model Numbers

Model / Part NumberFeaturesReplaces
PD60Wago connectors; 18-20 Amp positions; 2 Inputs; Blown Fuse LED'S; 11 position DC ground Bar; Color = Black.PD60B12T2N15
PD60B18T2LN
PD60B18T2L15
PD60B18T2N15
PD60K12T2L11
PD60K12T2NN
PD60K18T2LN
PD60K18T2L15
PD60K18T2NN
PD60AWago connectors; 15-20 Amp, 3-30 Amp positions; 2 Inputs; Blown Fuse LED'S; 11 position DC ground Bar; Color = Black.PD60B12T2N15
PD60B18Q2LN
PD60B18Q2L15
PD60B18Q2N15
PD60B18T2LN
PD60B18T2L15
PD60B18T2N15
PD60K12Q2L11
PD60K12T2L11
PD60K12T2NN
PD60K18Q2LN
PD60K18Q2L15
PD60K18Q2NN
PD60K18Q2N15
PD60K18T2LN
PD60K18T2L15
PD60K18T2NN
