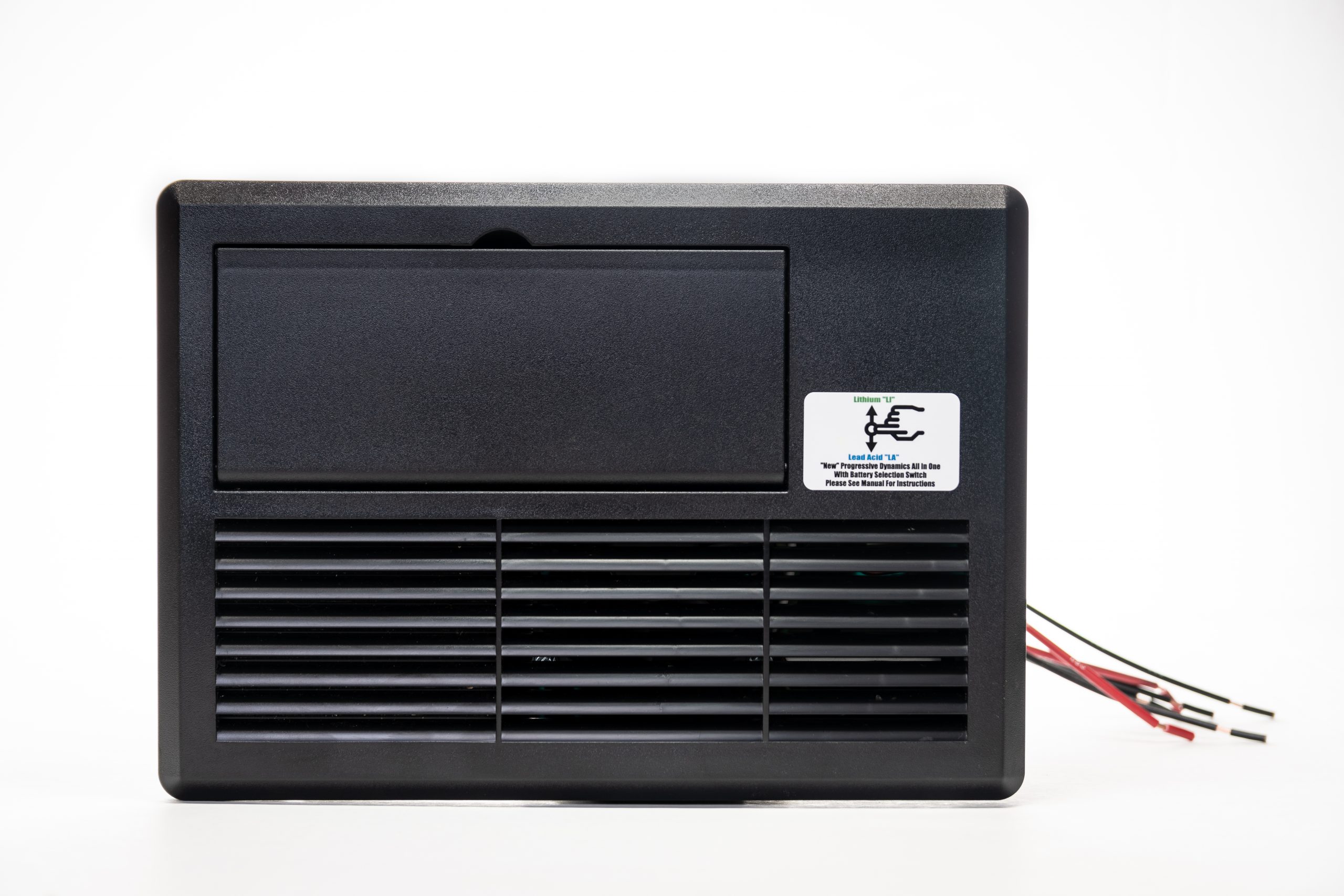

COMPACT ALL-IN-ONE-SYSTEM…
REPLACEMENT FOR WFCO 8735!
Available with our exclusive built-in Inteli-Power Converter…
“The most reliable converter in the RV industry.”
- New: PD4135KW2BV has Switch for using LiFePO4 Lithium Batteries, or Lead Acid.
- Note: Only models produced after January of 2021 have the Lithium switch feature.
- The converter section is easily serviceable. The AC Distribution Panel is rated for 120 VAC @ 30 Amps with up to 5 branch circuits.

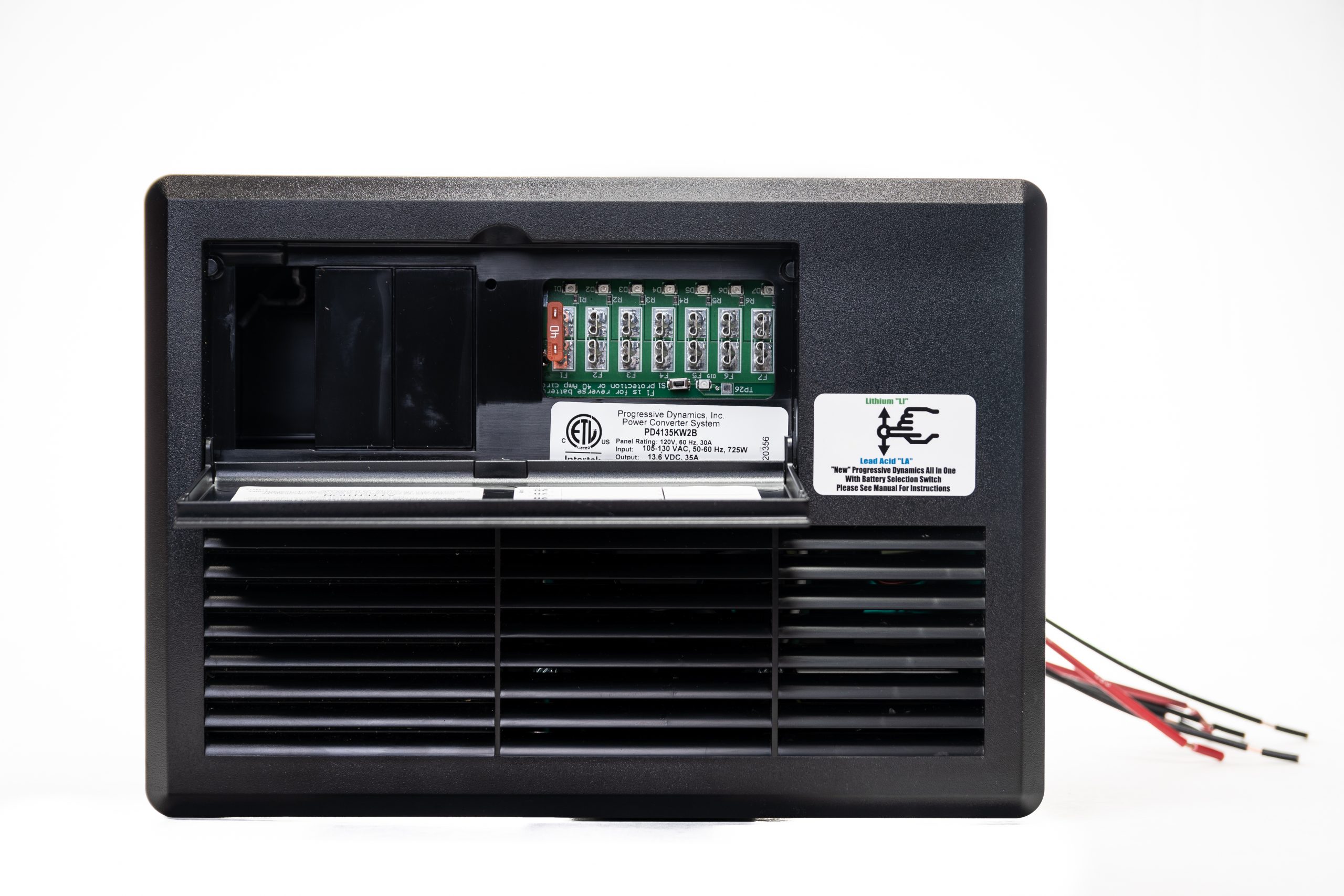

- The DC section has 6 branch fuse holders. Retail model includes all wire tails for ease of installation. OEM models have 1/4” tab connectors.
- LED indicators identify which fuse is blown.
- Easy access to reverse battery protection fuse.
- Replaceable converter section.
| Panel Dimensions: | 11.25”W x 8”H x 3.8”D |
| Cutout Size: | 10.25”W x 7.0”H |
| Weight: | 3.8 lbs. |
| Replacement Converter Section: | Model PD4135CSV |
| Retail model PD4135W2BV (with wires) OEM model PD4135W2B (with wires) | Input: 105-130VAC 50/60HZ 725 Watts Output: 13.6VDC 35 Amps DC rating 1-40A, 1-30A, 4-20A fuse holders |
Product Information
| Series Name | Models covered | Owners / Installation Manual | Troubleshooting Guide | Parts or accessories |
|---|---|---|---|---|
| PD4100 Power Center | PD4135 | PD4100-English-Manual PD4100 French Manual PD4100 Addendum to RevA-manual Lithium Switch Instructions ReadMe when replacing converter section!
| PD4135_Troubleshooting | PD4135CSV |
Close Warning: Products MAY contain a chemical known to The State of California to cause Cancer, Birth Defects or Other Reproductive Harm. |
Available Model Numbers
| Model / Part Number | Features | Replaces |
|---|---|---|
| PD4135KW2BV | Retail Model With Wires. Note: Models produced after January of 2021 have the Lithium switch feature. | PD4135K2,PD4135K, PD4135KW,PD4135KW2 Models with Quick connects are no longer available |
| PD4135KW2B | OEM Model With Wires Note: Models produced after January of 2021 have the Lithium switch feature. | PD4135K2,PD4135K, PD4135KW,PD4135KW2 Models with Quick connects are no longer available. |
| PD4135CSV | Replacement Converter section. PD4100 ReadMe before replacing Converter section ! Note: Models produced after January of 2021 have the Lithium switch feature. | The Converter section only in all PD4135 models |
