PD6000 Series

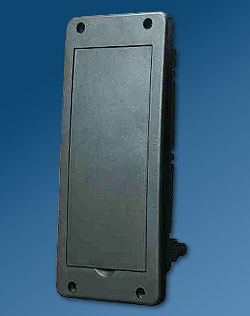

6000 Series Flush Mount DC Distribution Panel
The 6000 Series Flush-Mount DC Distribution Panel.

*Retail and OEM Part Numbers will be determined by your selected options when you place your order.



Specifications
Dimensions: 9.25" H x 4.25 W x 2.375" D
Cut-out Size: 3.5" W x 7.5" D
Weight: 1 Lb.



Features

bullet

Compatible with 5500 Series AC Power Distribution Panel.
bullet

Can be mounted horizontally or vertically.
bullet

Holds up to 18 ATC-type fuse holders for 20 or 30 Amp fuses.
bullet

DC Panel has 2 built-in +12 Volt power bus terminals for connecting battery and converter positive wires.
bullet

Attractive, light weight panel design made from impact-resistant, high temperature polymers.
bullet

12 Volt DC output connectors available as either 1/4" Fast-on® or screw type.
bullet

Available in 12 fuse holders with 11-position ground bus bar.
bullet

18 fuse holder with 15-position ground bus bar.
bullet

LED indicators alert to blown fuse.
bullet

Available in brown, black, and white.
