Inteli-Power® 4600 Series NEW! Interactive Video

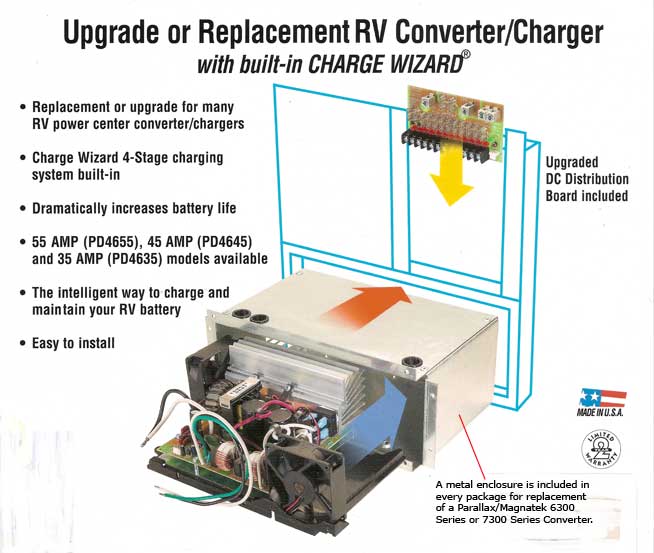

Upgrade or replacement for many RV power center converter/chargers with built-in Charge Wizard®

4600 Series upgrade or replacement power converters.
  • Charge Wizard 4-State charging system built-in.
  • Dramatically increases battery life.
  • This converter/charger will not boil the battery!
  • 55 Amp (PD4655V), 45 Amp (PD4645V) and 35 Amp (PD4635V) models available.
  • The intelligent way to charge and maintain your RV battery.
  • Easy to install.
  • A metal enclosure is included in every package for replacement Parallax/Magnatek 6300 Series or 7300 Series Converter.

Inteli-Power 55 Amp Converter/Charger
Model #PD4655V replaces these converter sections:
Parallax/Magnatek #6355, Parallax #7355, Parallax #7155,
Parallax #8355, WFCO™ #8955

Inteli-Power 45 Amp Converter/Charger
Model #PD4645V replaces these converter sections:
Parallax/Magnatek #6345, Parallax #7345, Parallax #8345
WFCO™ #8945

Inteli-Power 35 Amp Converter/Charger
Model #PD4635V replaces these converter sections:
Parallax/Magnatek #6336, WFCO™ #8935

Inteli-Power 4600 Series models can recharge the battery to 90% in 3-6 hours
using our patented Charge Wizard technology:

  • BOOST Mode 14.4 Volts - Rapidly brings RV battery up to 90% of full charge.
  • NORMAL Mode 13.6 Volts - Safely completes the charge.
  • STORAGE Mode 13.2 Volts - Maintains charge with minimal gassing or water loss.
  • EQUALIZATION Mode 14.4 Volts - Every 21 hours for a period of 15 minutes prevents battery stratification
    & sulfation - the leading cause of battery failure.

PD4600 Converter Replacement Section Specifications

  PD4635 PD4645 PD4655
Maximum DC Output Current 35-Amps 45-Amps 55-Amps
Maximum Continuous Input Power 550 watts 725 watts 950 watts
No Load DC Output Voltage 13.6 VDC 13.6 VDC 13.6 VDC
No Load Voltage Tolerance +/- .3 VDC +/- .3 VDC +/- .3 VDC
Full Load Output Voltage > 12.6 VDC > 12.6 VDC > 12.6 VDC
Ripple and Noise Voltage <50 MV RMS <50 MV RMS <50 MV RMS
Input Voltage Tolerance 105 - 130 VAC 105 - 130 VAC 105 - 130 VAC
Input Voltage Frequency 50-60 HZ 50-60 HZ 50-60 HZ
Peak Inrush Current 32-Amps 32-Amps 47-Amps
Efficiency (Typical) > 80% > 80% > 80%
Reverse Battery Protection YES YES YES
Electronic Current Limiting YES YES YES
Cooling Fan Auto-variable speed Auto-variable speed Auto-variable speed
Back Up Thermal Protection YES YES YES
Storage Temperature 20-80C 20-80C 20-80C
Operating Temperature 0-50C 0-50C 0-50C
Hipot Voltage Test <-------- 1240 V @ INPUT TERMINALS -------->
Over Voltage Protection YES YES YES
Under Voltage Protection YES YES YES
Full Function Charge Wizard YES YES YES
Weight 9 lbs. 9 lbs. 10 lbs.
Dimensions 13.25"W x 8"D x 5.38"H 13.25"W x 8"D x 5.38"H 13.25"W x 8"D x 5.38"H
Replacement Cross List: Model # Model # Model #
WFCO 8935 8945 8955
MAGNATEK 6336 6345 6355
PARALLAX 6336 7345 6355/7355/7155

* Retail and OEM Part Numbers will be determined by your selected options when you place your order.

TOP OF PAGE   |   BACK TO PREVIOUS

PD4600 Series Features

  • Reverse Battery Protection
  • Total Charge Management System
  • Electronic Current Limiting
  • High and Low AC input protection
  • Intelligent, variable speed, cooling fan
  • Automatic thermal protection
  • Covered by one or more of the following U.S. Patents:
    5,982,643; 6,184,649 and 7,782,002
