Inteli-Power® 4500 Series

The Ultimate All-In-One 240V, 50 Amp AC/DC Distribution Panel with built-in Charge Wizard® - Now Available in 75 Amp!

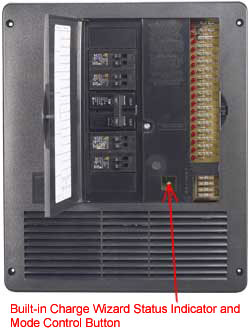

Ultimate All-In-One System... AC/DC Distribution Panel and Inteli-Power Converter with Charge Wizard

Inteli-Power AC Features:

The AC Distribution Panel is rated for 240VAC at 50 Amps.

Provisions for up to 12 branch circuit breakers plus a center feed dual 50 Amp main breaker (not included).

12 built-in push and lock strain relief wiring connectors make installation quick and easy and saves over 50% on installation costs.

Attractive lightweight panel design made from black impact-resistant high temperature polymers.

Inteli-Power DC Features:*

Top two fuse holders recommended for low current devices such as smoke and carbon monoxide detectors.

Optional 12 branch fuse holders with 2-30 Amp circuits or 18 branch fuse holders with 4-30 Amp circuits. Maximum rating 20 Amps on
remaining circuits – available with optional wire tail connections.

Optional L.E.D. indicators identify which fuse is blown.

Converter/Charger section is accessible from the front.

Converter/Charger ratings of 60, 75 & 90 Amps which is the largest rating available in the industry.

Easy access reverse battery protection fuses.

Optional DC disconnect tie in.

*Customer must supply options when ordering.

Inteli-Power 4500 Series models can recharge the battery to 90% in 3-6 hours
using our patented Charge Wizard technology:

  • BOOST Mode 14.4 Volts - Rapidly brings RV battery up to 90% of full charge.
  • NORMAL Mode 13.6 Volts - Safely completes the charge.
  • STORAGE Mode 13.2 Volts - Maintains charge with minimal gassing or water loss.
  • EQUALIZATION Mode 14.4 Volts - Every 21 hours for a period of 15 minutes prevents battery stratification
    & sulfation - the leading cause of battery failure.

PD4500 Inteli-Power Panel Specifications Table

  PD4560 PD4575 PD4590
Maximum DC Output Current 60-AMPS 75-AMPS 90-AMPS
Maximum Continuous Input Power 1,000 WATTS 1,300 WATTS 1,550 WATTS
No Load DC Output Voltage 13.6 VDC 13.6 VDC 13.6 VDC
No Load Voltage Tolerance +/- .3 VDC +/- .3 VDC +/- .3 VDC
Full Load Output Voltage > 12.6 VDC > 12.6 VDC > 12.6 VDC
Ripple and Noise Voltage <100 MV RMS <100 MV RMS <100 MV RMS
Input Voltage Tolerance 105 - 130 VAC 105 - 130 VAC 105 - 130 VAC
Input Voltage Frequency 50-60 HZ 50-60 HZ 50-60 HZ
Peak Inrush Current 47-AMPS 80-AMPS 80-AMPS
Input Current at Rated Power ˜11.4-AMPS ˜17.7-AMPS ˜17.7-AMPS
Efficiency (Typical) > 80% > 80% > 80%
Reverse Battery Protection YES YES YES
Electronic Current Limiting YES YES YES
Cooling Fan Auto-variable speed Auto-variable speed Auto-variable speed
Back Up Thermal Protection YES YES YES
Full Function Charge Wizard YES YES YES
Storage Temperature -20-80C -20-80C -20-80C
Operating Temperature 0-50C 0-50C 0-50C
Hipot Voltage Test <-------- 1240 V @ INPUT TERMINALS -------->
Over Voltage Protection YES YES YES
Under Voltage Protection YES YES YES
Weight 8 LBS. 8.5 LBS. 10 LBS.
Cutout Size 10.125W x 13.25H 10.125W x 13.25H 10.125W x 13.25H
Dimensions 11.85W x 14.125H x7.8D 11.85W x 14.125H x 7.8D 11.85W x 14.125H x 7.8D
AC Distribution Specs:
Rating (maximum input) 240 VAC/50 AMPS 240 VAC/50 AMPS 240 VAC/50 AMPS
Rating (maximum output) 120 VAC/50 AMPS 120 VAC/50 AMPS 120 VAC/50 AMPS
Breakers Max. 50 AMP Main... Up to 12 Branch Circuits
DC Distribution Specs:
DC Fuse Positions 12/18 12/18 12/18
Blown Fuse Indicators Optional Optional Optional
Ground Bar Optional Optional Optional

* Retail and OEM Part Numbers will be determined by your selected options when you place your order.


Other PD4500
Series Features

  • Reverse battery protection
  • Electronic current limiting
  • High and Low AC input protection
  • Intelligent, variable speed, cooling fan
  • Automatic thermal protection
  • Press open door for easy access to circuit breakers
  • Front access to large wiring compartment
  • Optional DC Ground Bus can be user
    installed in the DC wiring compartment.
  • Covered by one or more of the following U.S. Patents:
    5,982,643; 6,184,649; 6,424,520;
    RE39,461 and 7,782,002.


View the PD4500 Series Power Control Center Installation & Operation Guide
