Inteli-Power AC Features:

Accepts up to 5* branch circuit breakers when using split breakers.

AC Panel features 12 built-in push and lock strain relief wiring connectors for quick installation. Saves over 50% on installation cost.

Vertical or horizontal mounting choices.

Attractive light weight panel design made from impact-resistant high temperature polymers.

Note: 30 AMP main breaker and AC breakers are not included and shown for reference only.

* Additional circuits available with use of a listed energy management system.

Covered by one or more of the following patents: 5,687,066 5,600,550 5,982,643 6,184,649 6,424,520 - One or more additional patents pending.


Inteli-Power DC Features:

Top two fuse holders recommended for low current devices such as smoke detectors and carbon monoxide detectors.

12 or 18 Branch fuse holders with maximum rating of 30 AMPS each.

Optional L.E.D. indicators identify which fuse is blown.

Converter/Charger section is accessible from the front.

Converter/Charger ratings of 45 and 60 AMP.

Easy access reverse battery protection fuses.

Optional DC Ground Buss can be user-installed in the DC wiring compartment.

• Reverse battery protection
• Electronic current limiting
• Low line voltage protection
• Intelligent cooling fan
• High voltage protection
• Automatic thermal protection
• Press open door for easy access to circuit breakers
• Front access to large wiring compartment

• Snap lock cover stays shut while traveling. Opens with a touch.
• Attractive design with fine textured finish.
• Special formulation plastic is very durable and engineered for use in higher temperature applications.

Inteli-Power 4300 Series models can recharge the battery to 90% in 2-3 hours using our patented Charge Wizard technology.

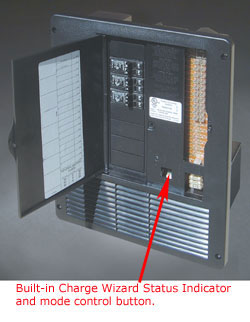

The built-in Charge Wizard automatically selects one of three operating modes: BOOST, NORMAL, STORAGE.

BOOST Mode - Indicated by green LED remaining on. The output voltage is 14.4VDC to rapidly recharge the battery up to 90% of full charge.

NORMAL Mode - When the battery is between 50% and 90% charged, the green LED will flash once per second. When the battery has reached 90% of full charge the green LED will flash 2 - 3 times per second. In this mode the output voltage is 13.6VDC and the converter is safely completing the charge of the battery.

STORAGE Mode - Indicated by green LED flashing every 6 - 8 seconds. In this mode the output voltage has ben lowered to 13.2VDC, the RV battery is fully charged and the converter is maintaining the charge.
